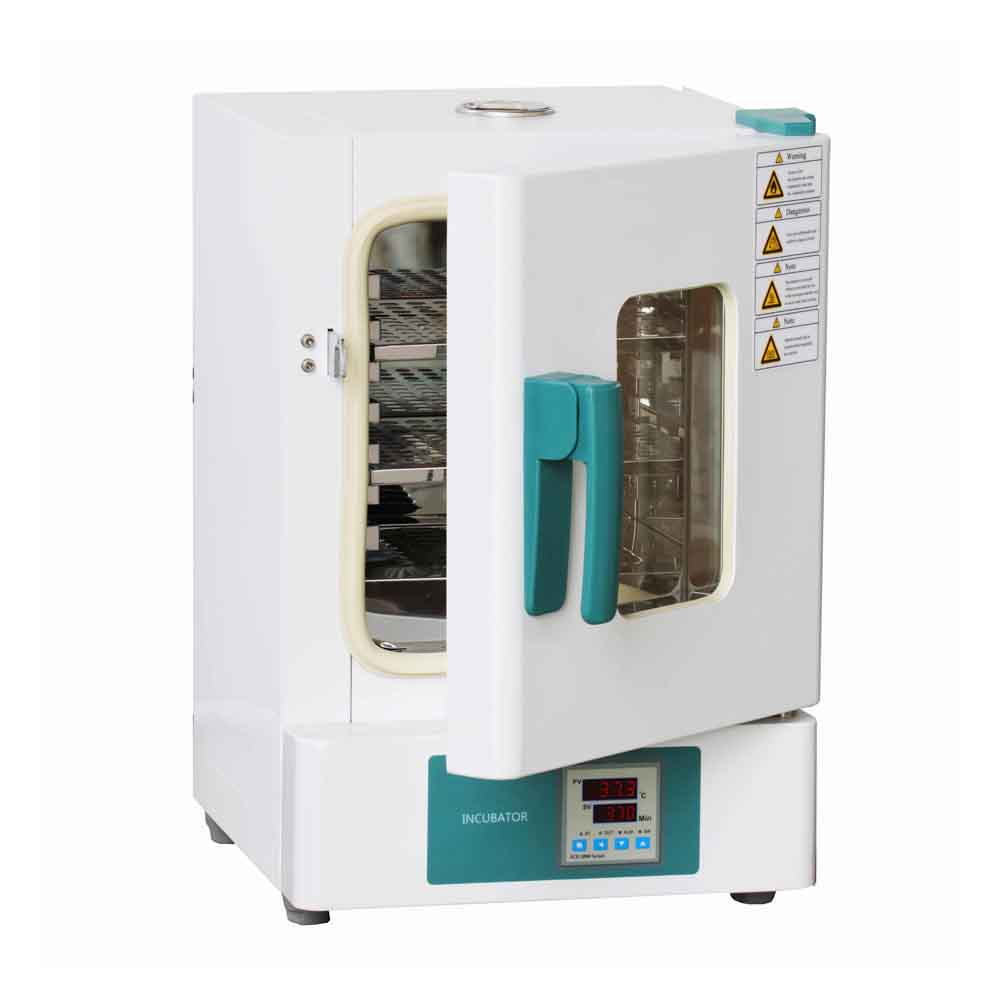

Product features:
1. High-quality cold rolling steel electrostatic spraying exterior.
2. Favin stainless steel or cold rolling steel inner chamber; foursquare semicircle transition, convenient for cleaning; space between shelves is adjustable.
3. Optional pointer type temperature controller or intelligent type temperature controller with PID program, digital display and light touching operation key; and with function of timing and over-temperature protection.
4. Door with wide double-glass observation window, adjustable air-tight buckle lock, and silicon rubber seal, which provide good sealing effect and efficiently prevent heat loss
Product Parameter
Model | WHL-25A/WHL-25AB | WP-25A/WP-25AB | |
Cycle Mode | Natural convection | ||
Function | Temp.Range | RT+10-300C | RT+5-65℃ |
Temp. Resolution Ratio | 0.1C | ||
Temp. Motion | +1C | +0.5%C | |
Temp. Uniformity | 土3.5% | +2.0C | |
Structure | Inner Chamber | B model: mirror stainless steel; without B model: High strength galvanized sheet | |
Outer Shell | cold rolling steel electrostatic spraying exterior | ||
Insulation Layer | High quality rock wool board(with CE) | ||
Heater | Nickel chromium alloy heating wire | ||
Power Rating | 0.6kW | 0.18kW | |
Exhaust Hole | φ28mm top (with function of test hole) | ||
Controller | Temp. Control Mode | Two temperature section intelligent PID | |
Temp. Set Mode | Touch button setting | ||
Temp. Display Mode | Measuring temperature: display on the four digital tubes upper row ; setting temperature:display on the lower row | ||
Timer | 0-9999min(with timing wait function) | ||
Operation Function | fixed temperature operation, timing function, auto stop | ||
Additional Function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking. power-off parameter memory | ||
Sensor | PT100 | ||
Safety Device | over temperature sound-light alarm | ||
Specification | Inner Chamber Size(W*L*H)(mm) | 260*260*260 | |
Exterior Size(W*L*H)(mm) | 380*455*568 | ||
Packing Size(W*L*H)(mm) | 500*530*657 | ||
Volume | 18L | ||
Shelf Number | 6 | ||
Load Per Rack | 15kg | ||
Shelf Space | 29mm | ||
(50/60HZ)Current Rating | AC220V/2.7A | AC220V/0.8A | |
NW/GW (kg) | 27/35 | ||
Accessory | Shelf | 2 | |
Optional Accessories | Shelf,Programmable controller | ||
