FSTest MC200 ATP Hygiene Monitor

Smart Real-Time Surface Hygiene Monitoring System

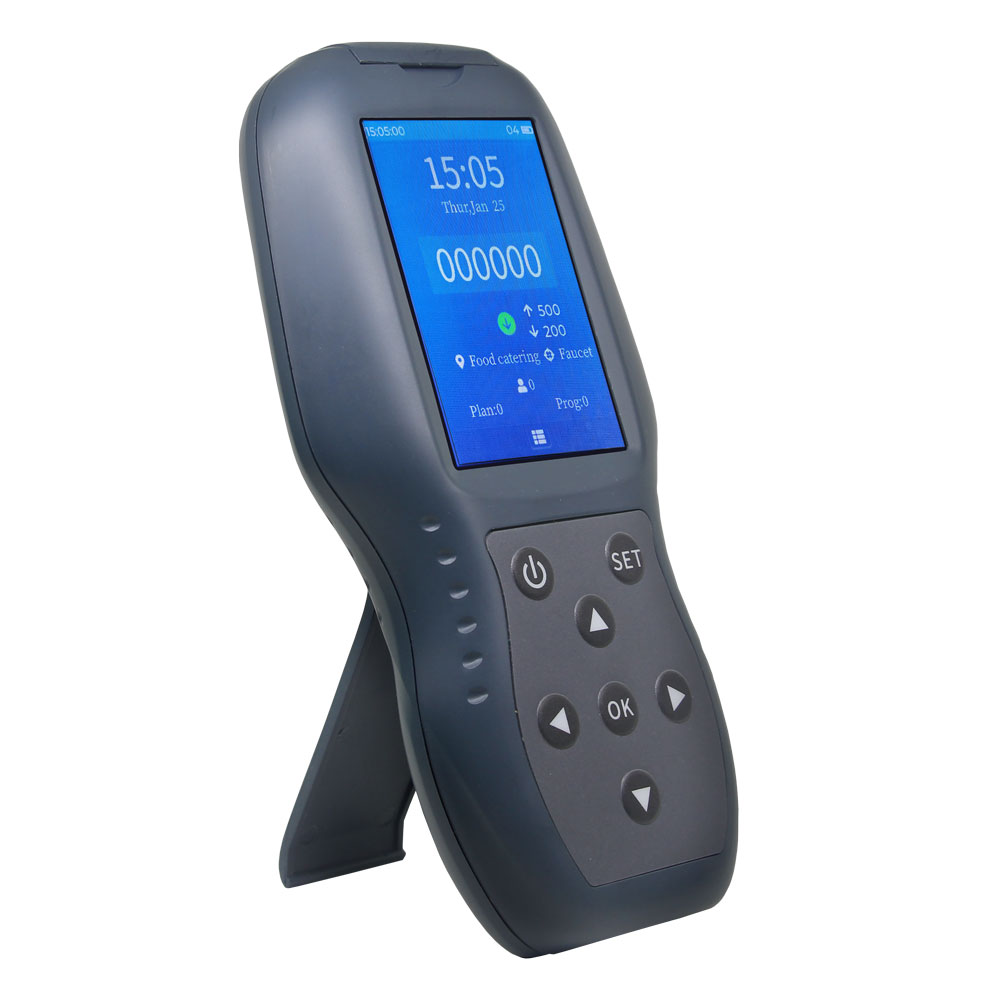

The FSTest MC200 ATP Hygiene Monitor is a high-performance handheld device designed for rapid and objective evaluation of surface cleanliness.

Using advanced ATP bioluminescence technology, it measures Adenosine Triphosphate (ATP)—a universal marker of biological residues and microbial contamination—and provides instant results in Relative Light Units (RLU).

It enables food safety and quality control teams to quickly identify contamination risks, verify cleaning effectiveness, and maintain consistent HACCP compliance.

Why Use an ATP Hygiene Monitor?

Traditional visual inspection cannot detect invisible contamination. The MC200 provides quantitative, data-driven hygiene validationwithin seconds.

It helps users:

• Verify cleaning effectiveness in real time

• Detect invisible organic contamination

• Reduce cross-contamination risks

• Standardize hygiene control procedures

• Strengthen HACCP and GMP compliance

Key Features & Benefits

• Ultra-Fast Results: Obtain accurate hygiene readings in just 10 seconds

• Ultra-High Sensitivity: Detects ATP at extremely low levels for invisible contamination monitoring

• Smart Touchscreen Operation: 3.5-inch display with intuitive interface for fast navigation

• Advanced Data Management: Stores up to 20,000–60,000 test records with export capability

• Customizable Testing System: Configure sampling plans, user profiles, and RLU threshold limits

• Portable Design: Lightweight handheld structure for field and facility inspections

Applications

The FSTest MC200 ATP Hygiene Monitor is widely used in:

• Food processing and manufacturing plants

• Beverage and dairy production facilities

• Commercial kitchens and catering services

• Healthcare and clinical environments

• Pharmaceutical cleanrooms

• Hospitality and food service operations

• Food contact surface hygiene verification

Industries

• Food manufacturing and processing

• Hospitality and catering

• Healthcare and hospital sanitation

• Pharmaceutical and cleanroom facilities

• Quality assurance and food safety laboratories

• Environmental hygiene monitoring

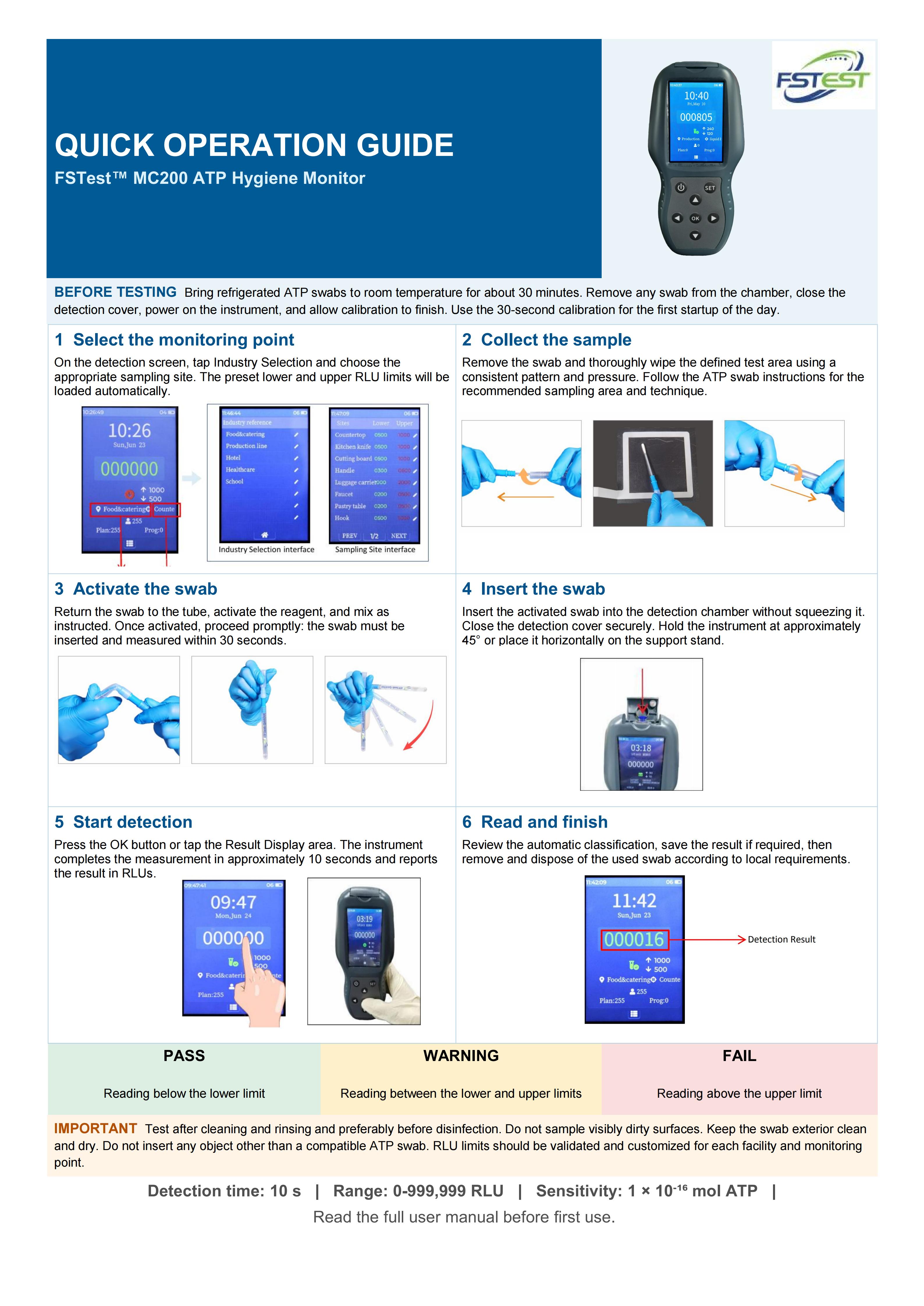

Simple Operation Workflow

Step 1 – Power On
Turn on the device and select the sampling plan or location profile.

Step 2 – Collect Sample
Use an ATP swab to collect samples from the target surface area.

Step 3 – Insert Swab
Insert the activated swab into the MC200 detection chamber.

Step 4 – Read Result
Get quantitative RLU results within 10 secondsand evaluate cleanliness status immediately.

Technical Advantages

• Measurement Range: 0 – 999,999 RLU

• Detection Time: 10 seconds

• Precision: ±5% or ±5 RLU

• High Sensitivity: Down to 1 × 10⁻¹⁶ mol ATP

• Data Storage: 20,000–60,000 results

• Connectivity:Wi-Fi / Bluetooth / USB export supported

• Display:3.5-inch touchscreen

• Battery:5200 mAh rechargeable Li-ion

• Charging:USB Type-C (5V/2A)

Compatibility

The MC200 is designed to work with:

• FSTest ATP Swab – QuickTest (Cat. No. 22101 / MC32.3120.5)

Ensures optimized reaction stability and consistent measurement accuracy.

Compared with Traditional ATP Devices

• Faster navigation with touchscreen interface

• Fully customizable testing programs and thresholds

• Larger data storage capacity for trend analysis

• Improved workflow efficiency for large-scale inspections

• More user-friendly operation compared with button-only devices

A Smarter Solution for Hygiene Control

The FSTest MC200 ATP Hygiene Monitor delivers fast, accurate, and data-driven hygiene verification for modern food safety systems.

It helps organizations improve sanitation control, reduce contamination risks, and maintain consistent compliance with global food safety standards.

FSTest – Fast. Smart. Reliable.
